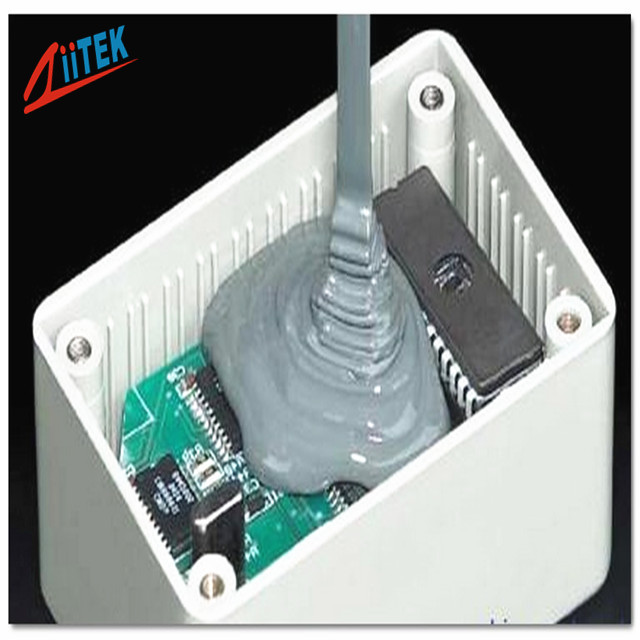

Heat-Resistant Waterproof Thermal Conductive Shockproof Epoxy Resin
Potting Compound For Electronic Equipment
Product Summary:
TIETM380-45 is a one component, heatcured epoxy adhesive. lt has
excellentthermal conductivity and bond strength.
TIETM380-45 is a good choice for highspeed production lines because it hasthe
rheology to allow stencil printing anda fast, one component, heat
cure.
TIE380-45.pdf
Feature
> Good thermal conductive: 4.5W/mK
> Good maneuverability andadhesion performance
> Low shrinkage
> Low viscosity, easy-to-gas emissions
> Good solvent resistance, water resistance
> Longer working hours
> Excellent resistance to thermal shock
Applications
> Automotive starters potting; General potting;
> Thermal detector potting
> Ferrite adhesion; TIP type LED; Good adhesion toaromatic
polyester
> Relay sealant;Good adhesion to rubber, ceramics,PCB and
plastics
> Power transformers and coils; Potting capacitors;Potting of
small electrical devices
> Adhesion to metal glass and plastic;LCD & substrates adhesion;
> Coating and sealant; Coil ; IGBTS;Transformer; Fire retardant
> Optical / medical component adhesive
| Typical Properties of TIE380-45 |
| Chemical type | Epoxy | Test Method |
| Appearance uncured | Gray Paste | Visual |
| Appearance cured | Dull Gray Solid | visual |
| Components | One Component | ****** |
| Heat Capacity | 0.7 l/g-K | ASTM C351 |
| Key Substrates | Metals, ceramics | ****** |
| Hardness | 92 Shore A | ASTM 2240 |
| Continuous Use Temp | -40~180℃ | ****** |
| Tensile strength Al/Al@25°C | >2900psi | ****** |
| Thermal Conductivity | 4.5 W/m-K | ASTM D5470 |
| Application Features |
| Color | Gray |
| Viscosity@25°℃ | 150,00 cPs |
| Specific Gravity@25-℃ | 1.87 g/cc |
| Shelf life @25℃ | 10 Days |
| Shelf life @0℃ | 6 Months |
| Storage methods and temperature will affect the shelf life |
| Curing procedures |
| Curing temperature | Curing time |
| 100℃ | 4 Hours |
| 125℃ | 2 Hour |
| 150℃ | 30 Minutes |
| 170℃ | 5 Minutes |
