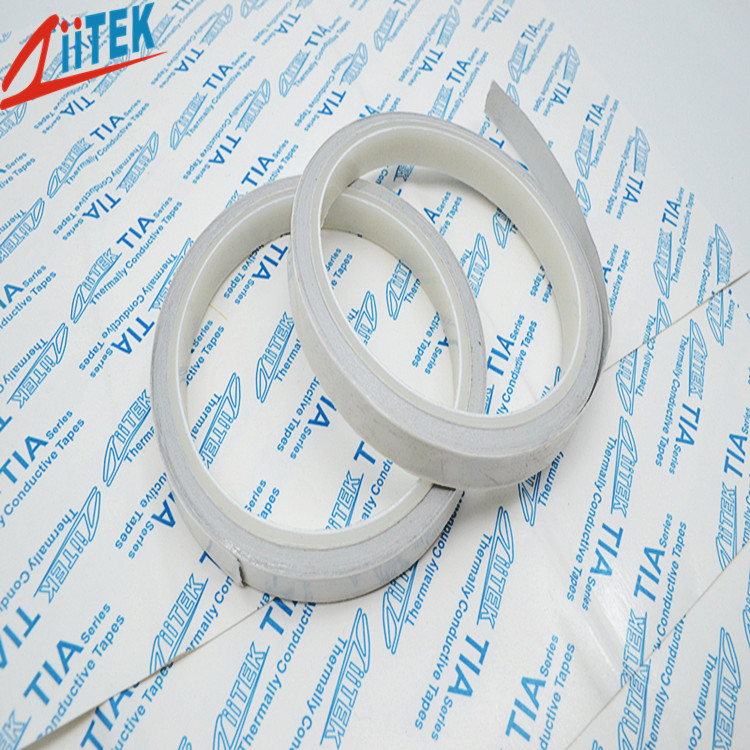

Fire-Proof High Thermal Conductivity Double-Side Adhesive Tape Heat
Transfer Thermal Tape For LED And Heat Sink
The TIA™600P Series products are mostly used for bonding heat dissipation fins,
microprocessors and other power consumption semiconductors. This
type of adhesive tape possesses ultimate bonding strength with low
thermal impedance, with which in effect can be able toreplace the
method of lubricating grease and mechanical fixing.
TIA600P
Series Datasheet-(E)-REV01.pdf
Features
> Thermal Conductivity: 0.8W/mK
> High performance,thermally conductive acrylic adhesive.
> Hihg bond strength to a variety of surfaces double sided
pressure sensitive adhesive tape.
> Fire rating equate 94V0
Applications
> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor
control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or
clip mounting
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
| Typical Properties of TIA™600P Series |
| Product Name | TIATM605P | TIATM608P | TIATM610P | Test Method |
| Color | White | Visual |
| Adhesive Type | Acrylic Adhesive | ******** |
| Backing Type | PET | ******** |
| Continuous Use Temp | -45℃ to 120℃ | ******** |
| Composite Thickness | 0.005"/ 0.127mm | 0.008" / 0.203mm | 0.010" / 0.254mm | ASTM D374 |
| Voltage Breakdown | > 1000Vac | > 1200Vac | > 1500 Vac | ASTM D149 |
| 180 Peel Adhesion | >1200 g/inch (Steel, Immediate) | PSTC-1 |
| 180 Peel Adhesion | >1400 g/inch (Steel after 24hrs) | PSTC-1 |
| Holding Power 25℃/Hours | > 48 Hours | PSTC-7 |
| Holding Power 80℃/Hours | > 48 Hours | PSTC-7 |
| Thermal Conductivity | 0.8W/mK | ASTM D5470 |
| Fire rating | Equal to 94V0 | ******** |
Standard Thicknesses:
0.005"(0.127mm) 0.008"(0.203mm) 0.010"(0.254mm)
Consult the factory alternate thickness.
Standard Sizes:
40" x 100'(1016mm x 30.48M) Individual die cut shapes can be
supplied.
Reinforcement:
TIA™600P series The coil can be filled with PET.
Company profile
With professional R&D capabilities and over 19 year experiences
in thermal interface material industry, Ziitek company own many
unique formulations which are our core technologies and advantages.
Our goal is to provide quality & competitive products to our
customers worldwide aiming for long-term business cooperation.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries
in English of course.
Standard Export Carton Or Marked With Customer's Information Or
Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if
you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory
solution.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just
contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data
sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM
D5470 are utilized to test the thermal conductivity.
